What Is a Separable Connector and How It Works

In today’s electrical and industrial settings, systems need to balance reliability with flexibility. Permanent joints such as welded or crimped connections deliver strength, but they are not convenient when equipment has to be upgraded, serviced, or rearranged. A separable connector solves this challenge. It is designed to be connected and disconnected multiple times while maintaining electrical performance, insulation quality, and operational safety.

This article explains the basic idea of separable connectors, how they operate, the main categories available, and why they are widely adopted in power distribution and other industries.

Definition: What Is a Separable Connector?

A separable connector is an electrical connector intended for repeated use, allowing attachment and removal without weakening the connection. Unlike permanent terminations, it makes systems more modular and easier to service.

In the power sector, these connectors are most often found in medium- and high-voltage networks. Utilities employ them to join underground cables to switchgear, transformers, or distribution cabinets. Instead of cutting and permanently terminating a cable, an engineer can plug or unplug it using a device that ensures both mechanical stability and reliable current transfer.

Depending on the design, they may be described as dead-break connectors, which must be operated only when circuits are de-energized, or load-break connectors, which can safely interrupt current flow under specified conditions. Both types are essential tools for managing distribution grids, because they let operators isolate faults, carry out maintenance, or change network layouts without needing a complete shutdown.

How Does a Separable Connector Work?

At its core, the operation of a separable connector follows a simple but carefully engineered sequence:

• Insertion and Alignment: The male plug is guided into the female receptacle. Keys or grooves ensure correct orientation and prevent accidental misalignment.

• Contact Engagement: Metallic contacts or spring-loaded fingers establish the electrical path. These parts are designed to provide low resistance and maintain consistent pressure for secure conduction.

• Locking or Retention: A locking mechanism—such as a bayonet latch, threaded coupling, or snap ring—secures the connection. This prevents vibration or accidental pulling from breaking the circuit.

• Separation:When disconnection is required, the locking mechanism is released and the connector is withdrawn. Depending on the design, this must occur when the system is de-energized (dead-break) or can be done under certain energized conditions (load-break).

Beyond the basic mechanical steps, separable connectors incorporate additional features that make them safe and durable:

• Insulating Housing: Often made from EPDM or silicone rubber, providing dielectric protection.

• Sealing and Gasketing: Prevents moisture ingress, which is critical in underground or outdoor installations.

• Shielding: Many designs are fully screened, meaning the outer surface is safe to touch even when energized.

• Stress Control: In high-voltage applications, stress cones or embedded resistive elements distribute the electric field, preventing partial discharge and insulation breakdown.

These engineering details ensure that the connector can be used in demanding environments while maintaining reliability over thousands of connection cycles.

Types of Separable Connectors

Separable connectors are not one-size-fits-all. Instead, different designs are tailored for voltage class, application, and mechanical requirements:

• Medium-Voltage Cable Connectors
  Used in distribution networks, these plug-in connectors allow underground cables to be safely joined to switchgear or transformers.

• Load-Break Connectors
  Designed to connect or disconnect live circuits under specific conditions, enabling reconfiguration of energized networks.

• Dead-Break Connectors
  Must be disconnected only when the system is de-energized, but offer robust mechanical and electrical performance.

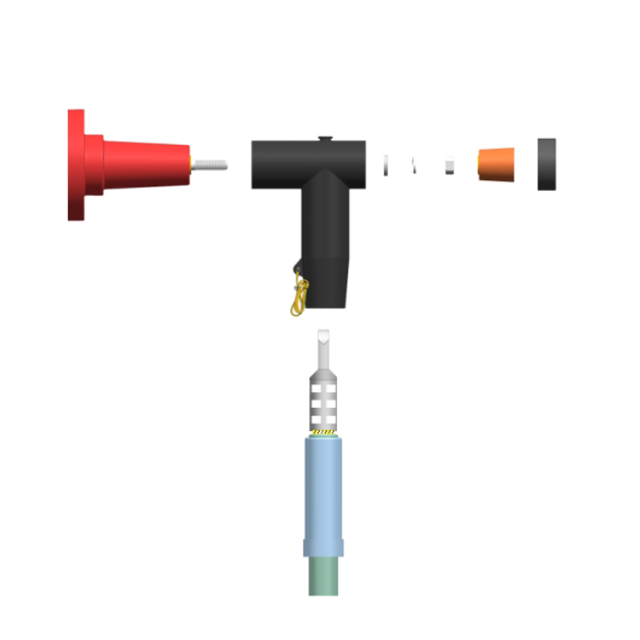

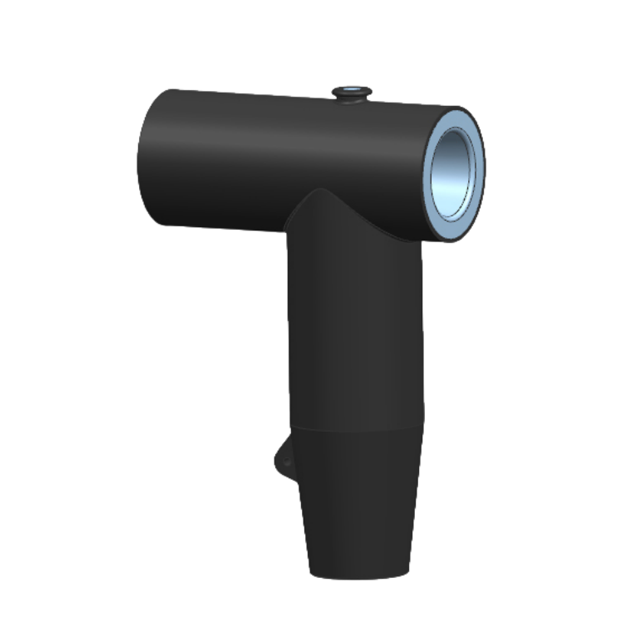

• T-Body Connectors and Couplers
  Provide branching paths, allowing one cable to feed multiple directions.

• Single-Pole Separable Connectors
  More common in industrial or entertainment settings, these handle flexible cables and are subject to strict safety codes.

Each type addresses a unique balance of safety, convenience, and performance, making them adaptable across industries.

Applications of Separable Connectors

The adaptability of separable connectors makes them a preferred solution in many sectors that rely on safe and serviceable electrical connections.

• Power Distribution Systems
  In medium-voltage distribution, separable connectors are a standard interface between underground cables and equipment such as switchgear or transformers. Their plug-in design allows utilities to connect, disconnect, or reroute cables quickly, which is particularly valuable when isolating faults or expanding the grid.

• Renewable Energy Installations
  Wind farms, solar plants, and other renewable projects often require modular designs. Separable connectors simplify the installation and replacement of components, allowing operators to maintain uptime while adjusting to new configurations.

• Transportation and Automotive
  In electric vehicles and rail systems, connectors that can be repeatedly engaged and disengaged are crucial for maintenance and modular assembly. They also help reduce downtime during component replacement.

• Industrial and Medical Equipment
  In manufacturing plants, modular machines depend on separable connectors for quick servicing. Medical devices also use similar systems to allow safe disconnection and reconfiguration without risking electrical faults.

Advantages and Limitations

While separable connectors bring significant benefits, they are not without trade-offs. Understanding both sides helps engineers select the right solution for their application.

Advantages

• Ease of Maintenance – Technicians can connect or disconnect equipment without permanently altering cables.

• Flexibility – Systems can be expanded or reconfigured without major downtime.

• Safety – Many designs include shielding and insulation that allow touch-safe operation, even in medium-voltage networks.

• Reusability – Unlike permanent joints, separable connectors can endure multiple mating cycles.

• Environmental Protection – Modern designs use seals and insulating housings to block moisture and contaminants.

Limitations

• Cost – The precision engineering and materials required often make them more expensive than fixed connections.

• Wear Over Time – Repeated use can lead to contact wear or degradation of seals.

• Design Complexity – To achieve safety and performance, manufacturing tolerances must be tightly controlled.

• Operational Constraints – Certain types, such as dead-break connectors, cannot be disconnected under load, limiting flexibility in live systems.

Conclusion

Separable connectors fill a vital role in systems that must be both reliable and serviceable. By combining robust electrical performance with the ability to connect and disconnect as needed, they enable utilities, manufacturers, and engineers to keep operations running while adapting to new challenges.

From underground power grids to renewable energy projects, their contribution lies in providing modularity without sacrificing safety. While they require higher upfront investment and careful handling, the long-term benefits in maintenance efficiency, safety, and system flexibility make separable connectors a cornerstone of modern electrical infrastructure.
