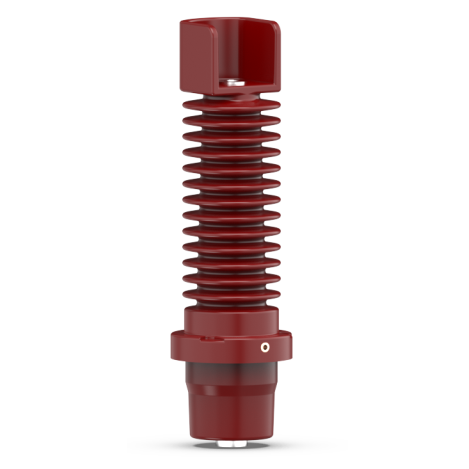

Gas-insulated RMU, 289 Epoxy Bushing,24kV 630/1250A

Model: 24kV
Rated current: 630A 1250A
Material: Epoxy resin
Application: Gas-insulated RMU
Bushing model: EN50180 & 50181 Type“C”
Execution Standards: IEC60502.4, GB/T12706.4
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 24kV 630/1250A

  • NKS POWER

Ⅰ. Introduction to 289 Epoxy Bushing

The 289 epoxy bushing is mainly connected with the external power supplyin the SF6 inflatable cabinet, the rated current can be 630A-1250A.voltage grade 24kV, choose high quality epoxy resin and copper, usingno local release induction network, can shield ground or connected tolive display.

  • Product execution standards: IEC60502.4, GB/T12706.4,GB/T11022

Ⅱ. Features of 289 Epoxy Bushing

  • Incoming (outgoing) cables for SF6 gas-insulated cabinets

  • Integrated molded with epoxy resin

  • The conductive rod is made of T2 copper silver-plated material with high conductivity.

  • It can be used in conjunction with compatible separable cable connectors to provide full shielding and sealing.

  • Quick assembly and simple installation

Ⅲ. Electrical Performance Parameters of 289 Epoxy Bushing


NKS-EB-24/1250-

Description

1# 289 Epoxy Bushing

 2# 289 Epoxy Bushing
Technical Parameters System Voltage

12/24kV

 12/24kV

Rated current

630A

 1250A

Frequency withstand voltage(AC)

 68kV/1min

Partial Discharge

 26.4kV＜5pC

Impulse voltage

 125kV ±10times
Capacitance value
 18±3PF
 26±3PF
Size of the conductive rod
A Φ25 Φ32
B Φ25 Φ32


The product has passed the inspection and certification of the China Electric Power Research Institute (CEPRI) Power Industry Electrical Equipment Quality Inspection and Testing Center

Type test reference standard: IEC 60502-4:2010 GB/T 12706.4-2008

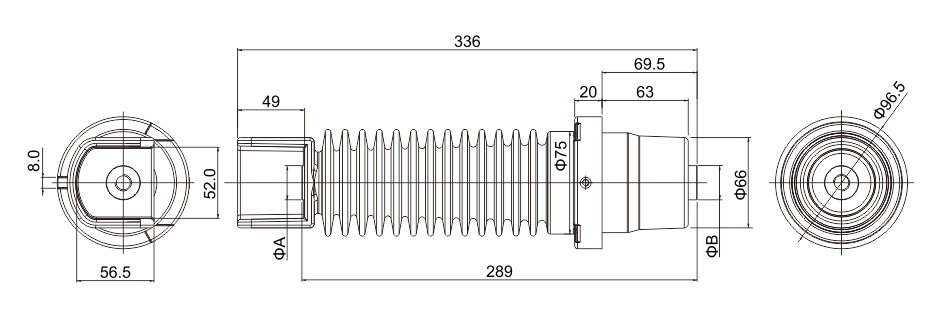

Sze of 289 Epoxy Bushing
