Technical Guide | NKSPOWER | Medium- and High-Voltage Cable Accessories
In medium- and high-voltage power distribution systems, reliable testing arrangements are essential for commissioning, maintenance and electrical safety.
A ring main unit (RMU) is widely used in secondary power distribution networks. When a project requires cable withstand testing, the compatibility of the testing interface with the switchgear and the intended test procedure becomes an important engineering consideration.
What should engineers know before selecting a 24 kV RMU cable testing terminations?
This guide explains its application, the role of EPDM rubber insulation, key selection considerations and what RMU manufacturers should confirm before ordering.
1. What Is a 24 kV RMU Cable Testing Termination?

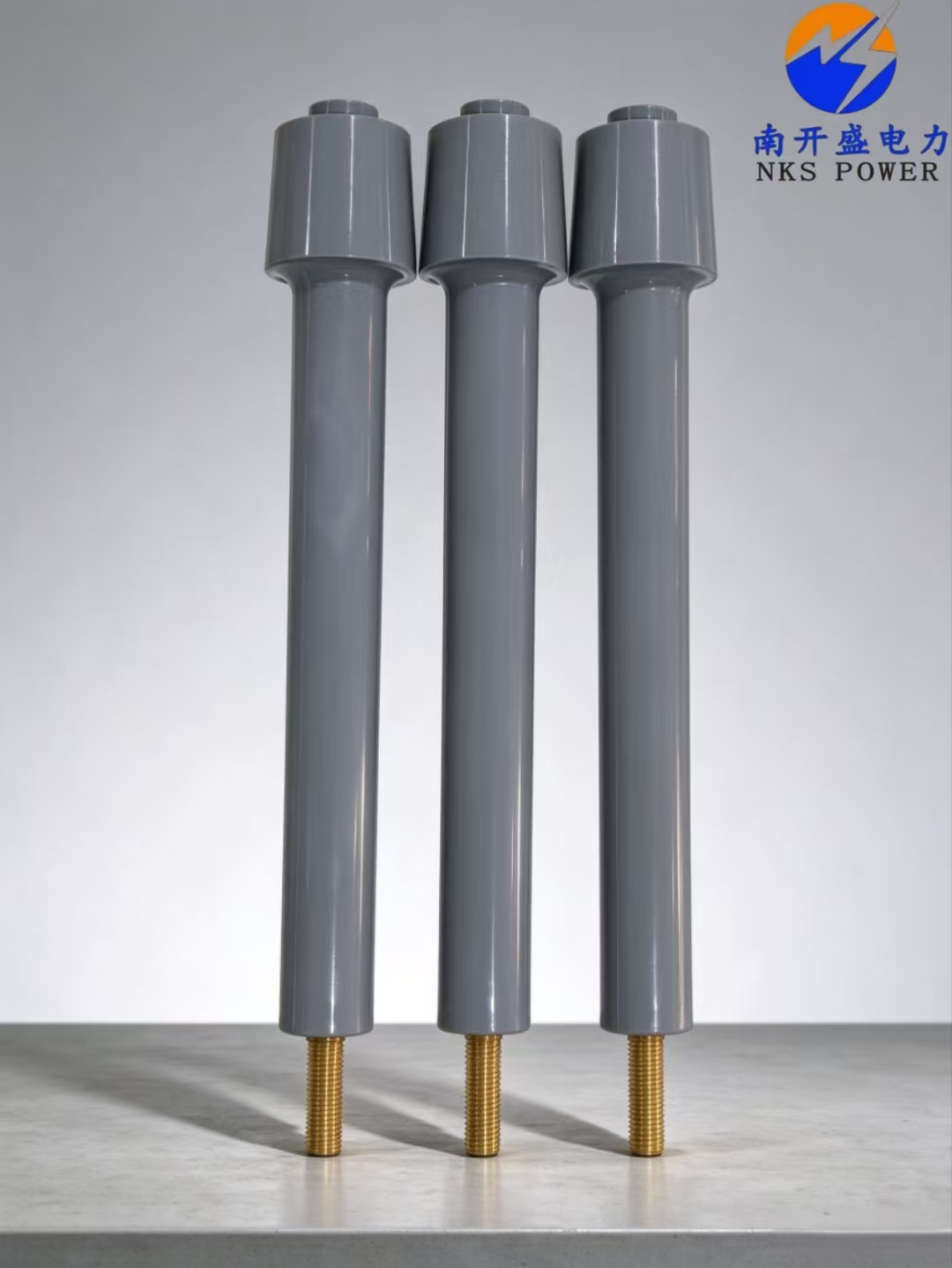

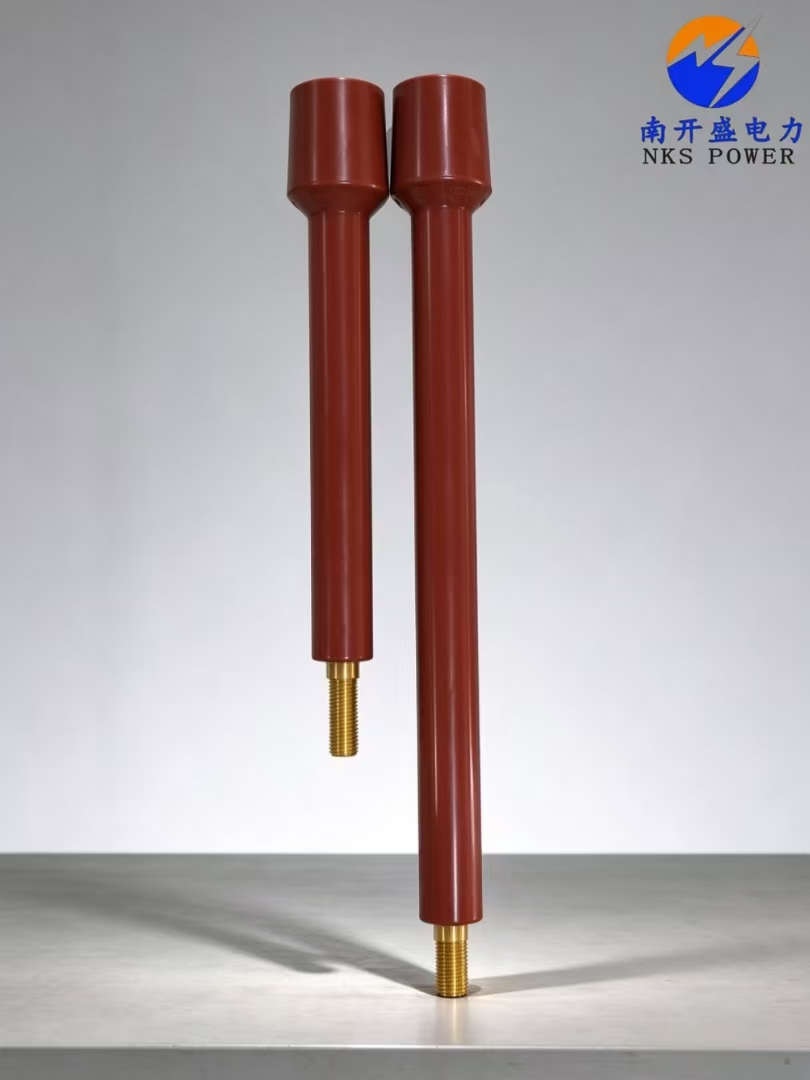

A 24 kV RMU cable testing termination is a dedicated component intended for cable withstand testing in compatible ring main unit configurations.
It provides a designated connection interface for the specified testing arrangement. Its suitability depends on the RMU design, the cable connection system and the test procedure approved by the switchgear manufacturer.
For engineers and switchgear manufacturers, the objective is not simply to find a termination that fits. The selected component must also meet the electrical, mechanical and installation requirements of the intended application.
NKSPOWER supplies 24 kV RMU cable testingterminations made with EPDM rubber, with both standard product supply and OEM supply options available.
2. Why Is a Dedicated RMU Cable Testing Termination Important?
Cable withstand testing is used in specified commissioning and maintenance procedures to assess cable insulation performance under prescribed test conditions.
A dedicated testing interface can provide a defined connection point for the approved test equipment. Depending on the RMU design and test procedure, this may reduce the need for unnecessary dismantling of the cable connection.
However, engineers should not assume that every RMU permits testing through the same interface or with all connected components in place.
Before testing, confirm:
The RMU manufacturer's approved testing procedure.
The intended cable section and test configuration.
The compatibility of the termination and test equipment.
The isolation and grounding requirements.
Whether connected components must be disconnected or otherwise protected.
Important: A cable withstand-testing termination should not be confused with a capacitive voltage detection point. These interfaces have different functions and must not be treated as interchangeable unless the equipment manufacturer explicitly specifies otherwise.
3. Why Does EPDM Rubber Matter?
EPDM (ethylene propylene diene monomer) rubber is used in electrical applications that require elastomeric insulation.
For an RMU cable testing termination, the insulating material is one of the factors engineers should consider alongside the product's electrical design, interface geometry and operating environment.
When evaluating an EPDM rubber component, engineers and procurement teams should review:
Insulation suitability: Confirm that the complete product is designed and qualified for the intended electrical application.
Interface compatibility: Check that the termination matches the specified RMU and cable connection arrangement.
Environmental conditions: Verify the manufacturer's permitted operating conditions and installation requirements.
Product documentation: Request applicable specifications, drawings and test documentation.
The presence of EPDM rubber alone does not establish a product's voltage withstand capability, temperature range or service life. These characteristics must be confirmed using the manufacturer's technical data.
4. How to Select the Right 24 kV RMU Cable Testing Termination
Selecting a cable testing termination requires more than matching the nominal voltage. The following checklist can help engineers and purchasing teams prepare a more accurate specification.
Electrical requirements
Confirm the intended 24 kV system application, the required test voltage, the test method and the applicable test duration. Do not assume that the system voltage is the same as the required withstand-test voltage.
Mechanical dimensions
Review the connection dimensions, mounting arrangement, fastening method and available installation space. A dimensioned drawing is particularly useful when replacing an existing component or developing a new RMU design.
RMU compatibility
Provide the switchgear manufacturer and model, interface details and cable compartment configuration. Similar-looking components may have different electrical or mechanical interfaces.
Quality and technical documentation
Request the product specification, dimensional drawing, applicable test reports and installation instructions. Any required standards or certifications should be confirmed against the project's procurement specification.
Supply requirements
Determine whether standard supply meets the project requirements or whether OEM production is needed for a specific design, interface or customer branding requirement.
Engineering tip: Share the interface drawing and required test conditions with your supplier before ordering. This helps identify compatibility questions early and reduces avoidable changes during project execution.
5. Where Is a 24 kV RMU Cable Testing Termination Used?
Depending on the switchgear design and approved application, a 24 kV RMU cable testing termination may be specified for projects involving:
RMU manufacturing: Integration into compatible ring main unit designs.
Power distribution networks: Supporting specified cable testing procedures in distribution systems.
Transformer substations: Applications involving RMUs and associated cable circuits.
Industrial power systems: Distribution equipment used in factories and commercial facilities.
Renewable energy projects: Compatible distribution systems used in renewable energy infrastructure.
Actual suitability must be confirmed for each switchgear model and project. These examples describe potential application areas rather than universal compatibility.
6. Standard Supply or OEM Supply: Which Is Right for Your Project?
Different projects may have different procurement requirements. NKSPOWER supports both standard product supply and OEM supply for its RMU cable testing termination offering.
Requirement
Standard supply
OEM supply
Product selection
Select from available standard specifications
Evaluate against agreed project requirements
Interface
Confirm against the existing RMU design
Review drawings and interface requirements before production
Branding
Confirm available options
Discuss private-label requirements
Documentation
Request available product documents
Agree on project-specific documentation requirements
Best suited for
Projects matching standard specifications
Equipment manufacturers and customers requiring an agreed OEM arrangement
OEM requirements, available customization and production feasibility should be confirmed with NKSPOWER before an order is finalized.
For RMU manufacturers, an early technical review can help align the component with the switchgear design and procurement requirements.
7.Looking for a 24 kV RMU Cable Testing Termination?
Contact NKSPOWER with your technical drawings and application requirements to discuss standard supply or OEM cooperation.
We welcome enquiries from RMU manufacturers, electrical equipment integrators, distributors and power project suppliers.
Frequently Asked Questions (FAQ)
Q1. What is a 24 kV RMU cable testing termination used for?
It is intended to provide a designated interface for cable withstand testing in compatible RMU configurations, subject to the equipment manufacturer's approved testing procedure.
Q2. What material is used in the NKSPOWER RMU cable testing termination?
The product information provided by NKSPOWER specifies EPDM rubber as the material. Other technical properties should be confirmed using the product specification.
Q3. Can this termination be used with any 24 kV RMU?
Not necessarily. Compatibility depends on the interface design, dimensions, electrical requirements and the switchgear manufacturer's specifications. Confirm these details before ordering.
Q4. Is a cable testing termination the same as a voltage detection point?
No. A dedicated cable withstand-testing interface and a capacitive voltage detection point have different functions. Their suitability must be determined by the equipment design and manufacturer instructions.
Q5. Does NKSPOWER support OEM supply?
Yes. NKSPOWER offers both standard product supply and OEM supply. Specific customization, branding, technical documentation and production arrangements should be confirmed with the team.
Q6. What information should I provide when requesting a quotation?
Provide the RMU model, interface drawings or dimensions, intended test application, required quantity and any applicable project standards. This helps the supplier assess compatibility and clarify outstanding technical requirements.
