H1 1kV Four Core Cable Heat Shrink Termination Installation Guide
Heat shrink cable termination is widely used for low voltage power cable connections due to its excellent insulation performance, environmental protection, and long-term reliability.
This article introduces the complete installation process of a 1kV four-core cable heat shrink termination kit, including cable preparation, grounding connection, heat shrinking, and terminal installation.
H2 Installation Steps of 1kV Four Core Heat Shrink Termination
Step 1: Prepare the Cable and Remove the Outer Jacket
First, measure and mark the required stripping length according to the installation requirements.
Remove the outer cable sheath carefully without damaging the insulation layer and internal conductors.
Step 2: Strip Cable Insulation and Separate the Four Cores

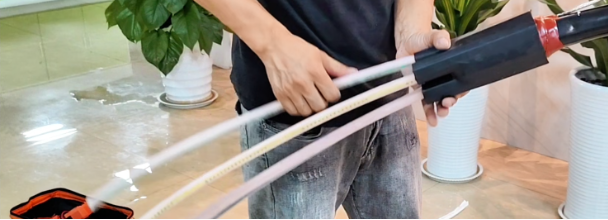

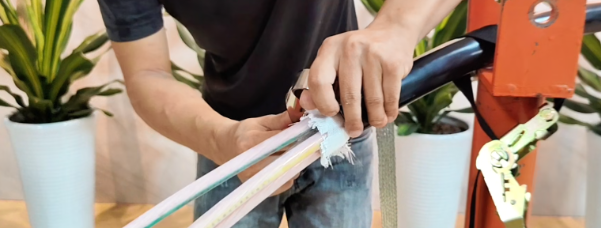

After removing the outer sheath, separate the four cable cores and prepare them for termination installation.
Strip the insulation layer at the cable end according to the required terminal insertion depth.
Step 3: Install Grounding Connection
Secure the cable armor using an aluminum sleeve.
Fasten the braided grounding wire to the armor through a constant force spring or welding method to ensure reliable grounding.
Step 4: Apply Sealing Tape Around Cable Ends

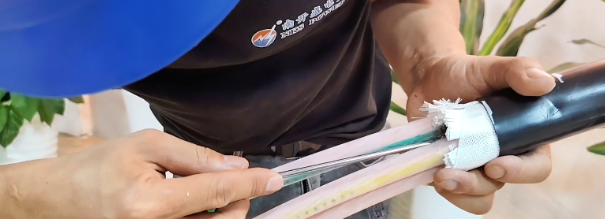

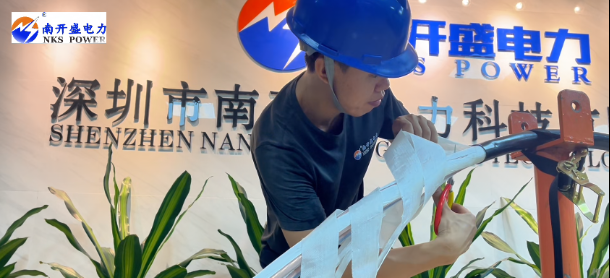

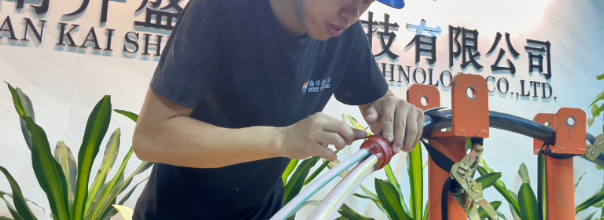

Wrap sealing tape around the cable sheath area and cable core separation area.
The sealing material helps prevent moisture penetration and improves environmental protection performance.
Step 5: Install Heat Shrink Tubes
Place the heat shrink tubes onto each cable core.

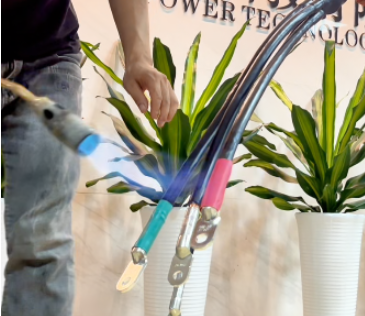

Use a heat gun to evenly heat the tube from the bottom to the top until it fully shrinks and tightly conforms to the cable surface.
Step 6: Install Cable Lugs and Crimp Terminals
Insert the cable conductor into the terminal lug.

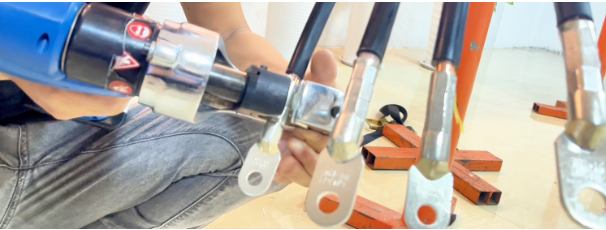

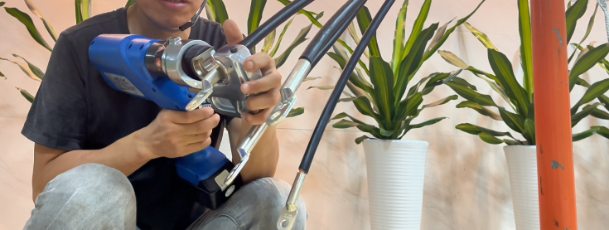

Use a hydraulic crimping tool to compress the terminal securely.
After crimping, remove sharp edges to avoid damaging the insulation tube.
Step 7: Final Heat Shrinking and Inspection
Slide the insulating heat shrink tube over the terminal area.
Heat the tube evenly until it completely shrinks.
Finally, check the whole termination for:
·Proper sealing
·Complete shrinking
·Secure grounding connection
·No damage on insulation layer
H2 Advantages of 1kV Heat Shrink Cable Termination
Excellent Electrical Insulation
Heat shrink materials provide stable insulation performance and protect cable connections from electrical failures.
Waterproof and Weather Resistant
The sealing structure protects against moisture, dust, and outdoor environmental conditions.
Easy Installation
Compared with traditional cable termination methods, heat shrink termination kits are simple to install and require fewer tools.
The installation quality of a 1kV four-core heat shrink cable termination directly affects cable safety and service life.
By following the correct installation procedure, including cable preparation, grounding connection, heat shrinking, and terminal crimping, the termination can achieve reliable electrical performance and long-term stability.
NKSPOWER provides high-quality low voltage heat shrink cable accessories, cable termination kits, and cable joint solutions for global power distribution applications.
NKS Power adheres to the concept of environmental friendliness and smart connection, and is willing to work with you to create green and sustainable development, leading smart technology power industry.
