H1 How to Install a 24kV Cold Shrink Cable Termination: Complete Installation Guide

H2 Introduction

Cold shrink cable terminations have become one of the most widely used solutions for medium voltage cable systems because of their reliable insulation performance, simple installation process, and long service life. Unlike traditional heat shrink accessories, cold shrink products require no flame or heating equipment. The pre-expanded silicone rubber automatically contracts onto the cable after the supporting spiral core is removed, creating a tight waterproof seal with excellent electrical insulation.

Today, 24kV cold shrink cable terminations are commonly installed in substations, transformers, ring main units (RMUs), industrial plants, wind farms, solar power stations, and urban distribution networks. Correct installation is essential because improper cable preparation or incorrect assembly may lead to insulation defects, partial discharge (PD), moisture ingress, or premature equipment failure.

This guide explains the complete installation process, from cable preparation to final inspection, helping installers improve reliability and ensure long-term performance.

H2 What Is a Cold Shrink Cable Termination?

A cold shrink cable termination is a pre-molded silicone rubber cable accessory designed to terminate medium voltage XLPE power cables safely. The accessory is factory-expanded over a removable spiral core. During installation, the installer simply positions the product and pulls out the spiral support, allowing the silicone rubber to shrink naturally around the cable.

Compared with traditional heat shrink products, cold shrink technology offers a more consistent installation quality because it eliminates the need for open flames or heating torches.

H3 Key Features

High-quality cold shrink cable terminations provide several important advantages:

· Flame-free installation

· Excellent electrical insulation

· Superior waterproof performance

· UV and weather resistance

· High elasticity and flexibility

· Long service life

· Reduced installation time

· Low maintenance requirements

These advantages make cold shrink technology increasingly popular for modern power distribution systems.

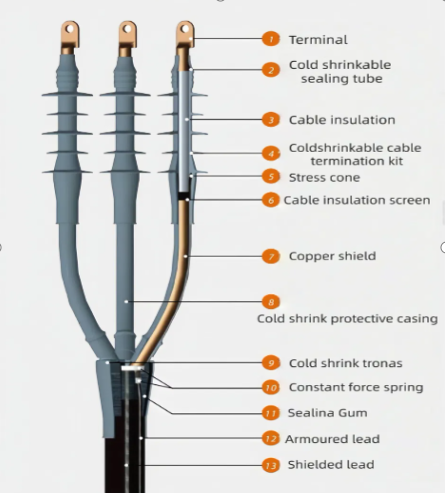

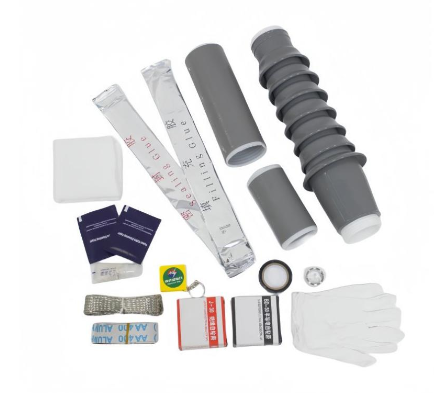

H2 Components of a Cold Shrink Cable Termination Kit

Before installation, installers should become familiar with every component included in the termination kit. Understanding the purpose of each part helps ensure correct assembly and prevents installation errors.

H3 Typical Components

A standard 24kV cold shrink cable termination kit usually includes:

· Cold shrink insulation tube

· Stress control tube

· Silicone rain sheds

· Cable lug

· Grounding kit

· Constant force spring

· PVC insulation tape

· Cleaning tissue

· Silicone lubricant

· Installation instructions

Each component plays an important role in maintaining insulation performance and electrical reliability.

H2 Tools Required Before  Installation

Proper preparation significantly improves installation quality and reduces the possibility of mistakes. Before beginning the installation, ensure that all required tools are available and in good condition.

H3 Recommended Tools

The following tools are commonly required:

· Cable stripping knife

· Measuring tape

· Marker pen

· Hydraulic crimping tool

· Crimping dies

· Torque wrench

· Cleaning cloth

· Silicone grease

· Insulated gloves

· Safety glasses

Using professional tools not only improves installation efficiency but also protects both the cable and the accessory from unnecessary damage.

H2 Installation Preparation

Preparation is one of the most critical stages of the installation process. Careful cable preparation ensures that every component fits correctly and that the electric field is distributed evenly after installation.

H3 Check the Cable Specification

Before starting, verify that the cable type, conductor size, insulation diameter, and voltage rating match the selected cold shrink termination.

Using an incorrect cable size may reduce insulation performance and compromise the reliability of the entire system.

H3 Inspect the Cable Surface

Inspect the cable carefully before stripping.

Check for:

· Mechanical damage

· Moisture

· Contamination

· Cracks in the insulation

· Damaged copper shield

Any defects should be repaired before installation.

H3 Prepare a Clean Working Environment

Installation should preferably be performed in a clean and dry environment.

Dust, moisture, oil, or metal particles may contaminate the insulation surface and increase the possibility of partial discharge during operation.

H2 Cable Preparation

Proper cable preparation directly affects the quality of the final installation.

H3 Measure the Cable Stripping Dimensions

Measure the stripping dimensions according to the installation manual supplied with the termination kit. Accurate dimensions are essential for proper positioning of the stress control tube and cold shrink body.

Avoid estimating dimensions by eye.

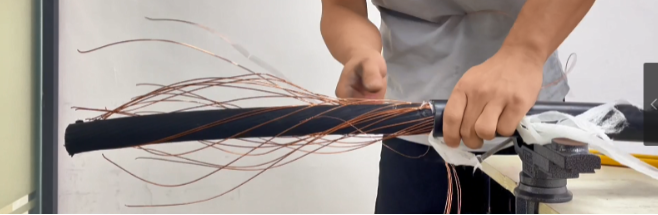

H3 Remove the Outer Jacket

Carefully remove the outer sheath using appropriate stripping tools.

Take care not to damage the copper shield or insulation layer beneath the jacket.

H3 Prepare the Copper Shield

Trim the copper shield evenly and install the grounding wire according to the specified dimensions.

A properly installed grounding system improves operational safety and provides an effective path for fault current.

H3 Remove the Semi-Conductive Layer

The semi-conductive layer should be removed smoothly without scratching or damaging the insulation surface.

After removal, clean the insulation thoroughly using the supplied cleaning tissue to eliminate dust and grease.

H2 Installation Procedure

Correct installation is essential to ensure the long-term reliability of a 24kV cold shrink cable termination. Every step should be carried out carefully according to the manufacturer's installation instructions to prevent insulation defects or electrical failures.

H3 Step 1 – Install the Cable Termination

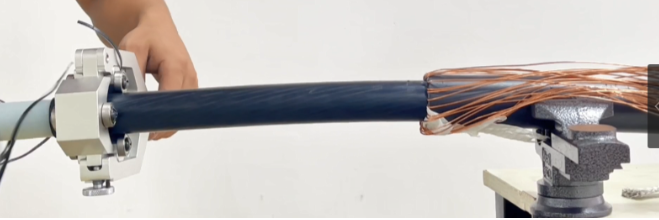

Once the cable conductor preparation is completed, select a cable lug compatible with the conductor cross-section and material. Place the lug in the correct position, then crimp using a qualified hydraulic crimping tool with the matching die.

Correct crimping of the cable lug ensures low contact resistance and reliable mechanical performance. After crimping, fully inspect the connection. Trim all sharp edges and burrs to prevent damage to insulating parts in subsequent installation.

Thoroughly clean the cable lug to eliminate metal debris, grease and contaminants before moving on to the next procedure.

H3 Step 2 – Install the Stress Control Tube

The stress control tube is one of the most important components of a cold shrink cable termination. Its primary function is to redistribute the electric field at the cable end, preventing electrical stress concentration that may lead to partial discharge or insulation failure.

Slide the stress control tube into the correct position according to the installation dimensions provided by the manufacturer. Ensure that the tube is centered and fully covers the required section of the cable insulation.

Incorrect positioning may significantly reduce the electrical performance of the termination.

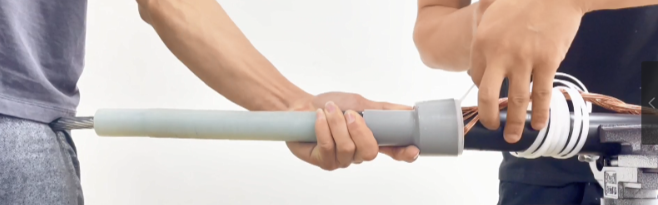

H3 Step 3 – Install the Cold Shrink Tube

Move the cold shrink tube to the correct installation position.

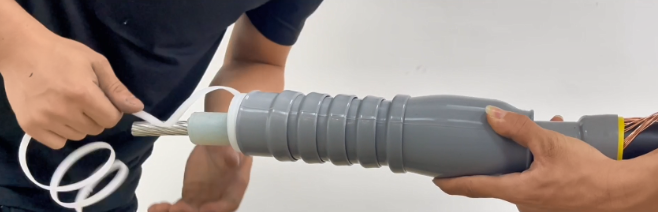

Hold the body firmly and slowly remove the spiral support core while maintaining the alignment of the tube. As the support core is removed, the silicone rubber automatically contracts and tightly seals the cable.

Do not rotate or pull the tube excessively during installation. The recovery process should be smooth and uniform to avoid wrinkles or uneven pressure.

After installation, check that the cold shrink tube completely covers the insulation and overlaps the stress control area as specified.

H3 Step 4-Install the Cable lug

Strip the cable insulation to expose the conductor with the required length. Select a cable lug matching the conductor cross-section and material. Insert the conductor fully into the barrel of the cable lug.

Use a qualified hydraulic crimping tool with the matched die to perform crimping in the specified positions. A correctly crimped cable lug delivers low contact resistance and reliable mechanical strength. After crimping, carefully inspect the connection. File away all sharp edges, burrs and metal flashes to prevent damage to insulation components.

Thoroughly clean the cable lug to remove metal particles, grease and dirt before continuing the installation of cold-shrink termination.

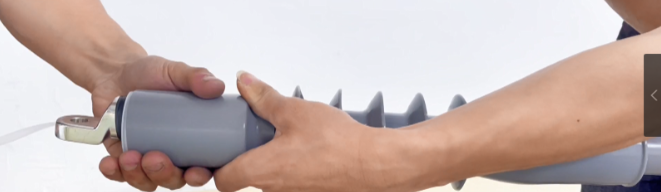

H3 Step 5– Install the Cold-shrink Sheathing Tube

Slide the cold-shrink termination body onto the cable and position it at the designated location. Slowly pull out the plastic core to release the cold-shrink tube. The EPDM sleeve will shrink tightly and form reliable insulation and sealing against the cable surface. Ensure uniform contraction without twisting or displacement. Allow sufficient time for full shrinkage before carrying out subsequent operations

 H3 Step 6– Install the Grounding System

Connect the grounding wire securely to the copper shield using the supplied constant force spring or grounding clamp.

The grounding connection should be mechanically secure and electrically reliable.

A poor grounding connection may affect the safety of the entire cable system.

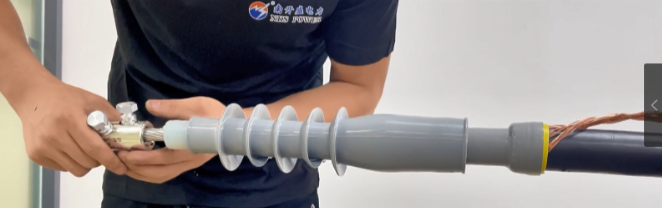

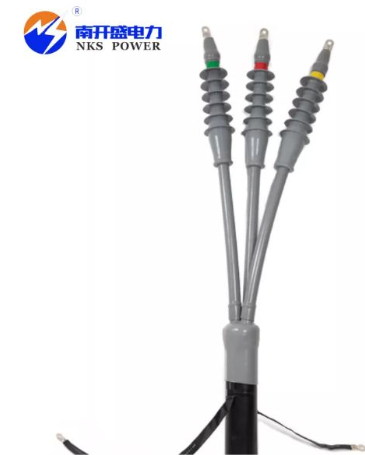

H3 Step 7 – Final Inspection Before Energization

Before the cable system is energized, perform a comprehensive inspection of the completed termination.

Inspection Checklist

· ✔ Cable lug securely crimped

· ✔ Stress control tube correctly positioned

· ✔ Cold shrink tube fully recovered

· ✔ Grounding system properly connected

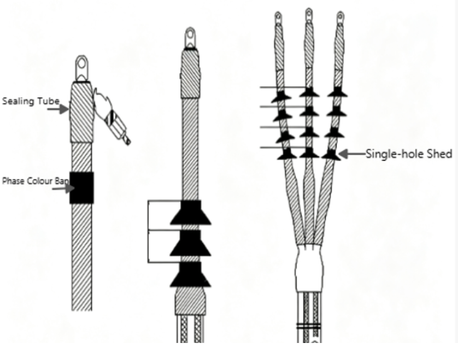

· ✔ Rain sheds correctly installed

· ✔ Insulation surface clean

· ✔ No visible damage or contamination

· ✔ Installation dimensions meet specifications

Only after all inspection items have been confirmed should the cable be placed into service.

H2 Frequently Asked Questions (FAQ)

H3 What is a cold shrink cable termination?

A cold shrink cable termination is a pre-expanded silicone rubber accessory used to safely terminate medium-voltage power cables without applying heat.

H3 What are the advantages of cold shrink technology?

Cold shrink technology offers flame-free installation, excellent waterproof performance, superior insulation, high elasticity, and reduced installation time.

H3 Can cold shrink cable terminations be installed outdoors?

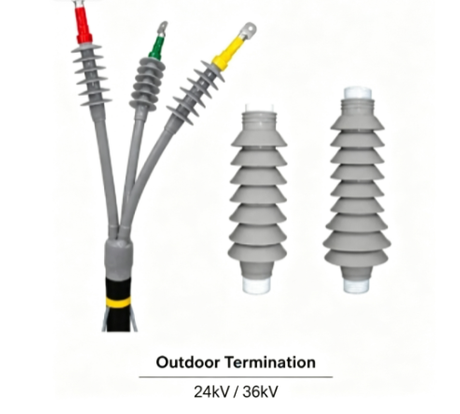

Yes. High-quality silicone rubber cold shrink terminations are designed for both indoor and outdoor environments and provide excellent resistance to UV radiation, moisture, and pollution.

H3 How long does a cold shrink cable termination last?

When properly installed and maintained, premium cold shrink terminations can provide reliable service for more than 20 years.

H3 Why is stress control important?

Stress control components help distribute the electric field evenly, reducing the risk of partial discharge and extending the service life of the cable termination.

H3 Do cold shrink terminations require maintenance?

Routine visual inspections are recommended, but cold shrink accessories generally require minimal maintenance due to their durable silicone rubber construction.

H2 Conclusion

Correct installation is the foundation of a reliable medium-voltage cable system. By carefully preparing the cable, following the recommended installation procedures, and performing thorough inspections before energization, installers can maximize the performance and service life of 24kV cold shrink cable terminations.

As a professional manufacturer of medium-voltage cable accessories, we offer a comprehensive range of Cold Shrink Cable Accessories, Heat Shrink Cable Accessories, Cable Joints, Separable Connectors, Epoxy Bushings, Side Busbar Connectors, Top Busbar Connectors, and PT Bridges. Our products are manufactured in accordance with international standards to provide safe, reliable, and long-lasting solutions for power distribution systems worldwide.
