Complete Guide to Medium Voltage Cable Accessories: Types, Applications and Selection

H2 What Are Medium Voltage Cable Accessories?

Medium voltage cable accessories are essential components used to connect, terminate, insulate, and protect medium-voltage power cables. They play a critical role in ensuring safe and reliable power transmission across electrical distribution systems.

Whether installed in substations, renewable energy projects, industrial plants, railway systems, or commercial buildings, cable accessories help maintain insulation performance, control electric field distribution, and protect cable systems from moisture, contamination, and environmental stress.

Selecting high-quality cable accessories not only improves operational reliability but also extends the service life of electrical networks while reducing maintenance costs.

H2 Why Are Cable Accessories Important?

Power cables alone cannot guarantee a safe electrical connection. Every cable requires reliable termination and connection solutions to maintain insulation integrity and electrical performance.

High-quality cable accessories provide several important benefits:

· Excellent electrical insulation

· Uniform electric field distribution

· Waterproof and moisture-resistant protection

· UV and weather resistance

· Long-term mechanical stability

· Easy installation and maintenance

· Extended service life

Poor-quality accessories may lead to insulation failure, partial discharge, overheating, or unexpected power outages.

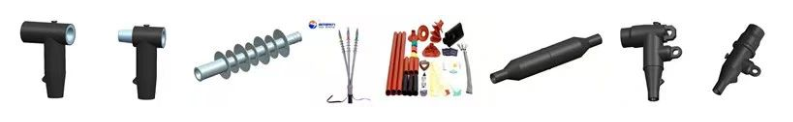

H2 Main Types of Medium Voltage Cable Accessories

Medium voltage cable accessories can be divided into several categories depending on their application.

H3 Cable Terminations

Cable terminations are used at the ends of power cables to connect them safely to transformers, switchgear, GIS systems, or overhead lines.

There are two main types:

Indoor Cable Termination

Indoor terminations are designed for switchgear rooms, substations, factories, and indoor electrical installations where environmental conditions are controlled.

Advantages include:

· Compact design

· Easy installation

· Excellent insulation performance

· Suitable for enclosed environments

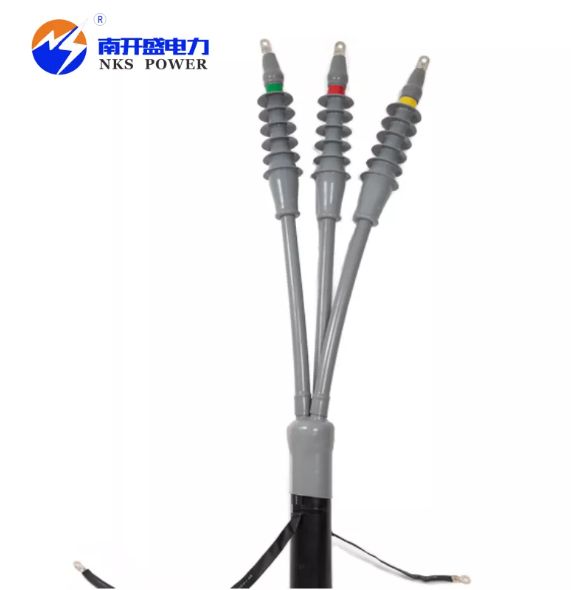

Outdoor Cable Termination

Outdoor terminations are specially designed for harsh environmental conditions such as rain, sunlight, wind, dust, and pollution.

Key features include:

· UV resistance

· Weather resistance

· Silicone rubber insulation

· Excellent hydrophobic performance

· Long service life

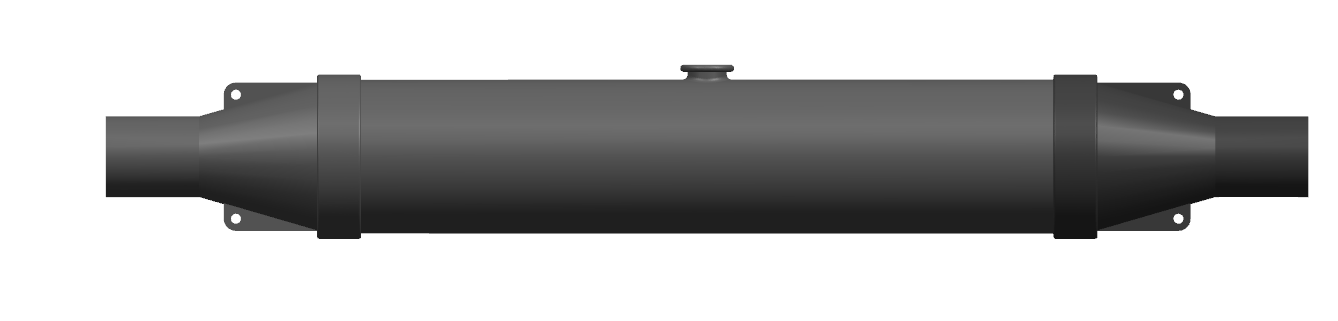

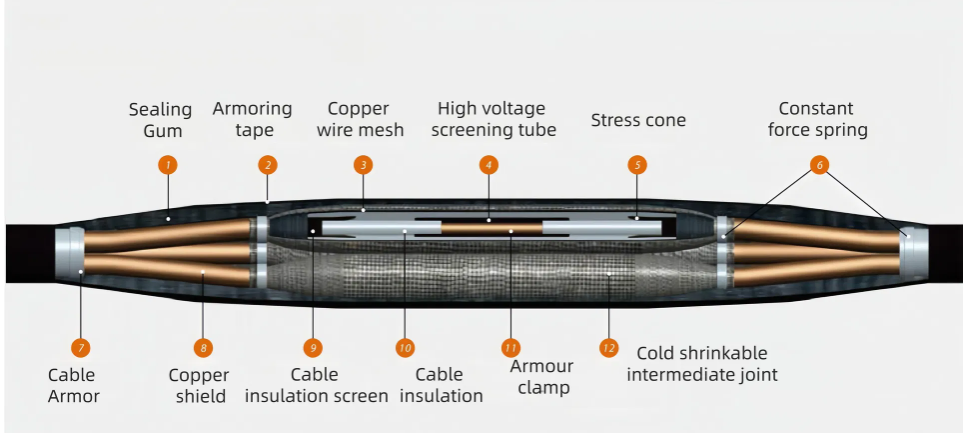

H3 Cable Joints

Cable Joints (Intermediate Joints) Installed between two cables to achieve cable splicing, branching, or electrical isolation.

Common types include:

• Straight-through Joints (Line Joints): Used to connect two cables with identical structure and materials, ensuring electrical continuity between the cable's metal sheath, metal shield, and insulation shield. Used in situations where the cable line is directly grounded.

·• Insulation Joints: Used to ensure electrical disconnection between the metal sheaths or metal shields of the cables at both ends. Used for cross-connection and transposition of cable lines to reduce sheath loss.

• Branch Joints: Used to connect branch cables to main cables. Common types include T-joints, Y-joints, and H-joints. Suitable for branch connections in medium and low voltage lines.

•Transition Joints: Used to connect cables with different conductors or insulation (e.g., between extruded cables and paper-insulated cables), or to connect multi-core cables and single-core cables.

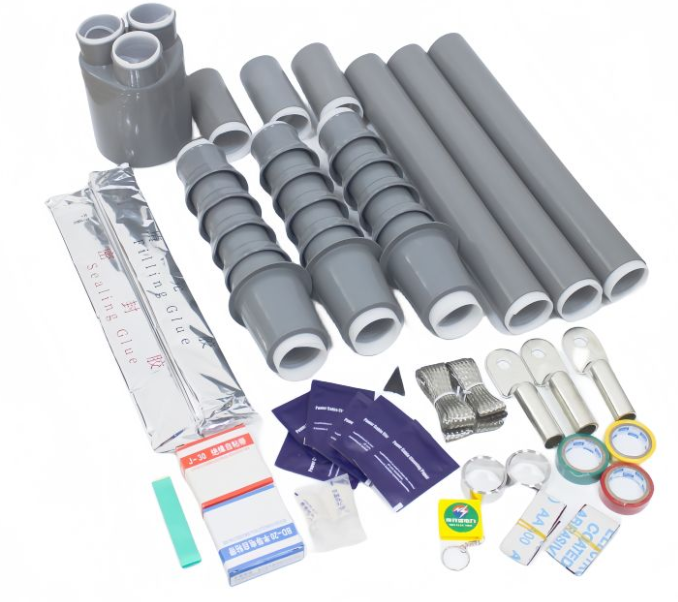

H3 Cold Shrink Cable Accessories

Cold shrink technology has become increasingly popular due to its simple installation and high reliability.

Unlike traditional heat shrink products, cold shrink accessories require no flame or heating equipment.

Benefits include:

· Fast installation

· Flame-free operation

· Excellent elasticity

· Reliable waterproof sealing

· Suitable for confined spaces

· Reduced installation errors

Cold shrink products are widely used in power distribution, renewable energy, railway systems, and industrial applications.

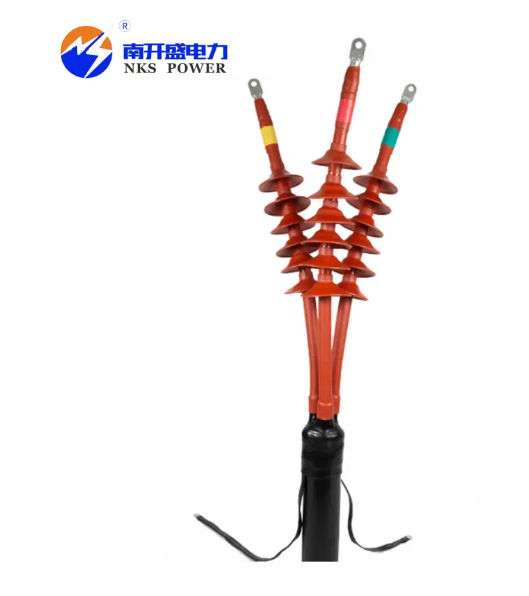

H3 Heat Shrink Cable Accessories

Heat shrink accessories remain one of the most widely used cable accessory solutions around the world.

After heating, the tubing shrinks tightly around the cable, providing reliable insulation and environmental protection.

Advantages include:

· Strong mechanical strength

· Wide application range

· Cost-effective solution

· Excellent insulation performance

· Mature manufacturing technology

H3 Pre-Molded Cable Accessories

Pre-molded accessories are manufactured using precision silicone rubber molding technology.

They provide:

· Stable electrical performance

· Consistent product quality

· Excellent electric field control

· Longer service life

· Faster installation

These products are commonly used for medium- and high-voltage cable systems.

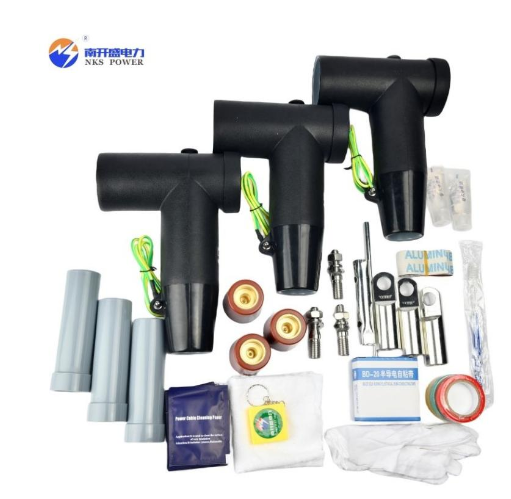

H3 Separable Connectors

Separable connectors are widely used in ring main units (RMUs), transformers, switchgear, and compact substations.

They allow quick cable connection and disconnection without affecting system reliability.

Their advantages include:

· Plug-in installation

· Safe maintenance

· Compact structure

· Reliable insulation

· Suitable for 12kV, 24kV, and 35kV systems

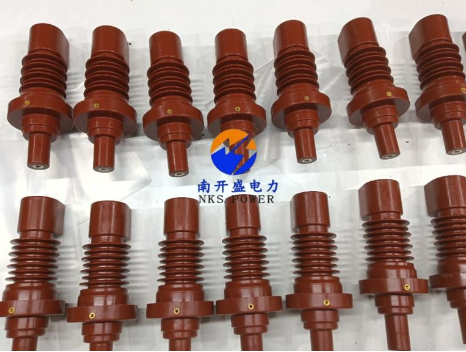

H3 Epoxy Bushings

Epoxy bushings provide insulation and mechanical support between energized conductors and grounded equipment.

They are widely used in transformers, switchgear, GIS equipment, and power distribution systems due to their high dielectric strength and mechanical durability.

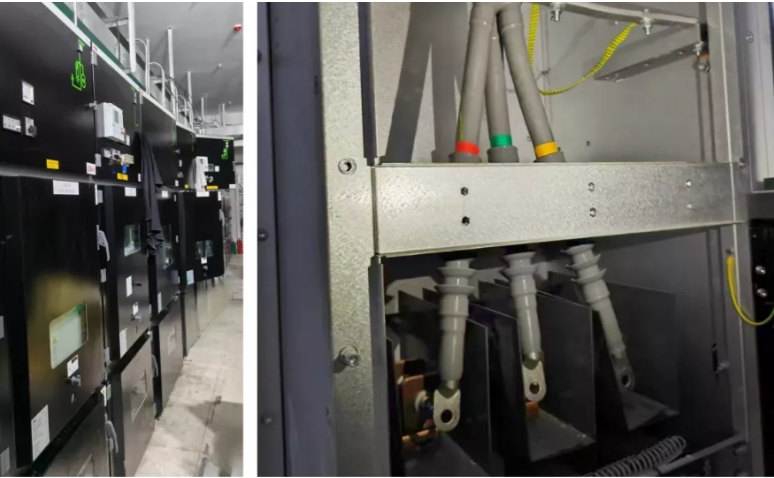

H2 Applications of Medium Voltage Cable Accessories

Cable accessories are widely applied in many industries, including:

· Power Distribution Networks

· Transformer Substations

· Wind Power Plants

· Solar Energy Projects

· Railway & Metro Systems

· Petrochemical Plants

· Industrial Manufacturing Facilities

· Mining Operations

· Data Centers

· Smart Grid Projects

H2 How to Choose the Right Cable Accessories

Selecting the right cable accessory depends on several important factors:

Voltage Level

Choose products designed for your operating voltage (12kV, 24kV, 35kV, etc.).

Cable Type

Confirm whether the accessory is suitable for XLPE, EPR, or other cable insulation materials.

Installation Environment

Indoor and outdoor environments require different insulation and weather resistance characteristics.

Installation Method

Cold shrink products are ideal for quick installation, while heat shrink products are suitable for traditional projects.

International Standards

Choose products manufactured according to IEC, IEEE, or GB standards to ensure safety and compatibility.

H2 Why Product Quality Matters

Reliable cable accessories help reduce insulation failures and improve long-term system stability.

High-quality products should feature:

· Premium silicone rubber

· Advanced electric field control

· Precision manufacturing

· Strict factory testing

· Excellent waterproof performance

· Long service life

These characteristics significantly reduce maintenance costs while improving power system reliability.

H2 Frequently Asked Questions

H3 What are cable accessories?

Cable accessories are components used to connect, terminate, insulate, and protect power cables in electrical distribution systems.

H3 What is the difference between cable termination and cable joint?

Cable terminations connect cables to electrical equipment, while cable joints connect two cable sections together.

H3 Which is better, cold shrink or heat shrink?

Cold shrink offers faster installation and better elasticity, while heat shrink provides excellent mechanical strength and remains a cost-effective solution.

H3 How long do cable accessories last?

High-quality cable accessories can provide reliable performance for over 20 years when properly installed and maintained.

H3 Where are medium voltage cable accessories commonly used?

They are widely used in substations, renewable energy projects, industrial facilities, rail transportation, and commercial power distribution systems.

H2 Conclusion

Medium voltage cable accessories are essential for ensuring the safety, reliability, and efficiency of electrical distribution systems. Whether selecting cable terminations, cable joints, cold shrink products, heat shrink accessories, separable connectors, or epoxy bushings, choosing high-quality solutions is critical to long-term performance.

As a professional manufacturer of medium-voltage cable accessories, we provide a complete range of products including Separable Connectors, Cold Shrink Cable Accessories, Heat Shrink Cable Accessories, Cable Joints, Epoxy Bushings, Side Busbar Connectors, Top Busbar Connectors, and PT Bridges, delivering reliable solutions for customers worldwide.
