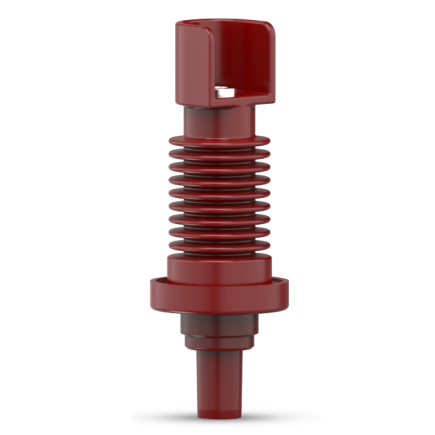

Ⅰ. Introduction to 230 Epoxy Resin Bushing
Docking bushing is mainly used in the inflatable ring networkcabinet, can effectively seal the insulation medium and support andfixed cable and copper row in the cabinet, can be connected to thequick power extraction device, rated current 250A, voltage level12kV, the material of high quality epoxy resin and copper, usingnon-local induction network, can shield grounding or connected to
live display.
Ⅱ. Features of 230 Epoxy Resin Bushing
1. Insulating Performance
The joint between the bushing and cabinet body shall have very good sealing properties so that there is no loss of insulating gases, such as SF6, inside the cabinet. It will maintain the required strength of insulation inside the cabinet while fulfilling environmental requirements.
The mono-block epoxy resin casing not only separates the gas inside and outside the cabinet but also has high strength to electrical insulation. It can effectively protect high voltages from flashing over the surface as well as personnel and equipment safety.
2. Low Loss Conductivity
The inner conducting rod is made of high-quality T2 copper with a silver plating process that greatly reduces contact resistance and heat generation by the conductor, enabling long-term, efficient, low-energy power transmission at 250A rated current.
3. Firm Support
The epoxy resin material has great mechanical strength, able to bear the weights of cables or busbars as well as withstand the electrodynamic forces that operation generates. It provides reliable fixed support.
4. Anti-Aging And Weather Resistance
Epoxy resin material naturally has good performance in UV resistance, corrosion resistance, moisture resistance, and anti-aging. This makes the sleeve keep stable performance in different complex environmental conditions and long service life.

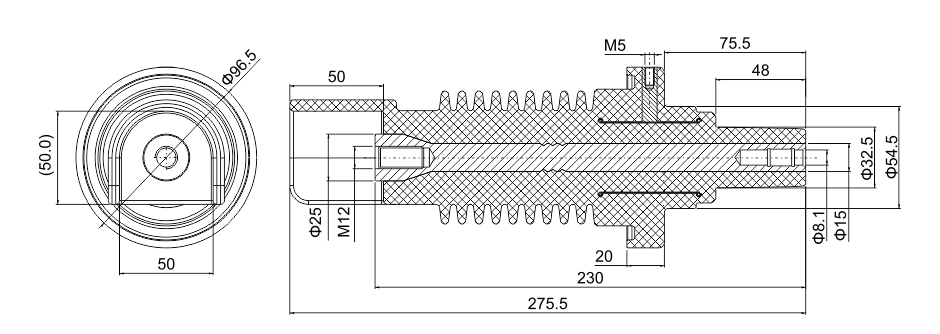

Ⅲ. Electrical Performance Parameters of 230 Epoxy Resin Bushing
NKS-EB-12/250- | Description | 230 Epoxy Bushing |
| Technical Parameters | System Voltage | 12kV |
Rated current | 250A |
Frequency withstand voltage(AC) | 42kV/1min |
Partial Discharge | 15kV＜5pC |
Impulse voltage | 95kV ±10times |
Capacitance value
| 18±3PF
|
The product has passed the inspection and certification of the China Electric Power Research Institute (CEPRI) Power Industry Electrical Equipment Quality Inspection and Testing Center
Type test reference standard: IEC 60502-4:2010 GB/T 12706.4-2008
