How To Install High Voltage Cable Termination for Optimal Performance

In the complex world of power distribution, the reliability of the entire grid can hinge on its "last-mile" connections. It's a field where failure isn't just an inconvenience; it can be catastrophic. Among the most critical components in this chain is the high-voltage cable termination. While the cable itself gets a lot of attention, the termination—the point where the cable connects to switchgear, transformers, or overhead lines—is where the system is most vulnerable.

A faulty installation can lead to insulation breakdown, flashover, and costly outages. From an observational standpoint, the vast majority of termination failures are not due to faulty products but to errors in installation. Precision, cleanliness, and adherence to instructions are not just guidelines; they are the fundamental pillars of a successful, long-lasting connection. This guide explores the effective installation process for a high-voltage cable termination, ensuring safety, reliability, and optimal performance for years to come.

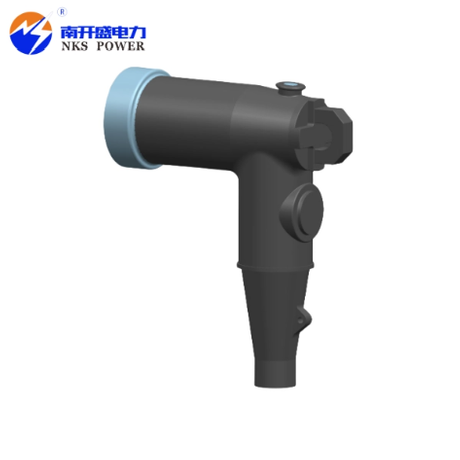

What Exactly Is a High-Voltage Cable Termination?

Before diving into the "how," it's essential to understand the "what." A high-voltage cable termination isn't just a simple connector. It's an engineered kit of components designed to handle two major challenges: electrical stress and environmental exposure.

     1. Electrical Stress Control: A high-voltage cable has a shielding layer (or "screen") that runs its length, keeping the electrical field contained within the cable. When you remove this screen to expose the conductor for connection, the electric field lines become highly concentrated and "stressed" at the point where the screen ends. Without management, this intense electrical stress will ionize the air and cause partial discharges, eventually burning through the insulation and causing a failure. The termination kit includes components (like stress control tubes or geometric cones) that grade this electric field, smoothing it out and preventing breakdown.

     2. Environmental Sealing: The termination must protect the prepared cable end from the elements. Moisture, dust, salt, and industrial pollutants can create conductive paths on the surface of the insulation, leading to "tracking" and flashover. The termination provides a weatherproof, UV-resistant seal, often using sheds (or skirts) to increase the creepage distance—the surface path an electrical current would have to travel.

Its job, in short, is to safely manage the cable's transition from a fully shielded, insulated environment to an unshielded connection point. For more knowledge about high-voltage cable termination, you can read our blog  What Is a High Voltage Termination and How Does It Work?

The 5-Step Guide to Effective Installation

Installing a high-voltage cable termination is a methodical process. Rushing is the enemy. Each step builds on the last, and a mistake in an early step (like cable preparation) cannot be fixed later. While specific instructions will vary between manufacturers and types (like heat-shrink vs. cold-shrink technology), the core principles remain universal.

Step 1: Meticulous Cable Preparation

This is, without a doubt, the most critical phase. An installer's skill is most evident here. The cable must be prepared precisely according to the measurements provided in the termination kit's instruction sheet.

• Stripping: First, the outer sheath, any armoring, and the metallic screen are removed to specific "cutback" dimensions. This requires specialized cable stripping tools to avoid nicking the underlying insulation.

• Semicon Removal: The "easy-strip" semiconductive layer (the black layer just over the insulation) must be removed. This layer must be cut back perfectly, with no stray carbon particles left behind. Any remaining semicon is a potential failure point.

• Cleaning: The exposed primary insulation must be rendered surgically clean. Using an approved cable cleaning solvent (and a lint-free cloth), wipe away all traces of carbon, grease, and contaminants. From this point on, the insulation should not be touched with bare hands.

Step 2: Installing Stress Control Components

With the cable prepared, the next step is to manage the electrical stress at the screen cutback. This is the "magic" of the termination.

• Heat-Shrink: For heat-shrink termination kits, this involves sliding a stress control tube over the insulation and screen cut. A torch is then used to apply heat evenly, causing the tube to shrink and form a tight, void-free fit. It's a bit of an art; too much heat can scorch the cable, while too little leaves gaps.

• Cold-Shrink: Cold-shrink technology is often faster. The components are pre-stretched onto a removable plastic core. The installer simply positions the termination body and pulls the core, allowing the EPDM rubber to shrink and seal itself onto the cable.

Step 3: Fitting the Lug or Connector

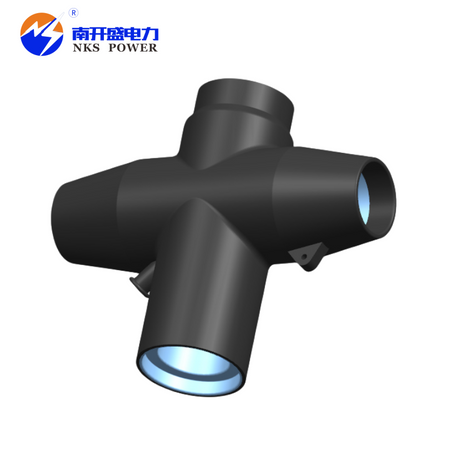

Now it's time to attach the connector that will link the cable's conductor to the equipment busbar.

• Crimping: The most common method is using a compression lug. A hydraulic crimping tool with the correct die size is used to permanently deform the lug barrel onto the conductor, creating a solid, low-resistance electrical connection. Using the wrong die is a recipe for overheating and failure.

• Mechanical Connectors: An alternative, especially in the field, is a mechanical shear-bolt connector. These lugs have bolts that are tightened until the bolt head shears off at a pre-determined torque, ensuring the correct clamping force.

Step 4: Applying Environmental Sealing

With the electrical connection made, the entire preparation area must be sealed from the environment. This usually involves several layers.

• Mastics and Tapes: Sealing mastics are often applied around the base of the lug and the cable's outer sheath entry point to fill any voids and block moisture.

• Outer Body/Sheds: The main insulating and weatherproof body is then installed. For heat-shrink kits, this is a long, anti-tracking tube, often with built-in sheds, that is shrunk down over the entire assembly. For cold-shrink, this is typically the main body that was applied in Step 2. This outer layer provides the primary defense against moisture ingress and surface tracking.

Step 5: Final Inspection and Testing

Before the cable is re-energized, a final check is essential. Visually inspect the termination for any signs of scorching, improper positioning, or poor seals.

Critically, the installation should be electrically tested. An insulation resistance test (using a "Megger") is the bare minimum to check for obvious faults or moisture. For more critical circuits, a DC high-potential (Hi-Pot) test may be performed to verify the installation's integrity and its ability to withstand operational voltage stress before it's put into service.

Common Installation Pitfalls (And How to Avoid Them)

Experience shows that most high-voltage cable termination failures trace back to a few common, avoidable errors. A little extra diligence here saves massive headaches later.
